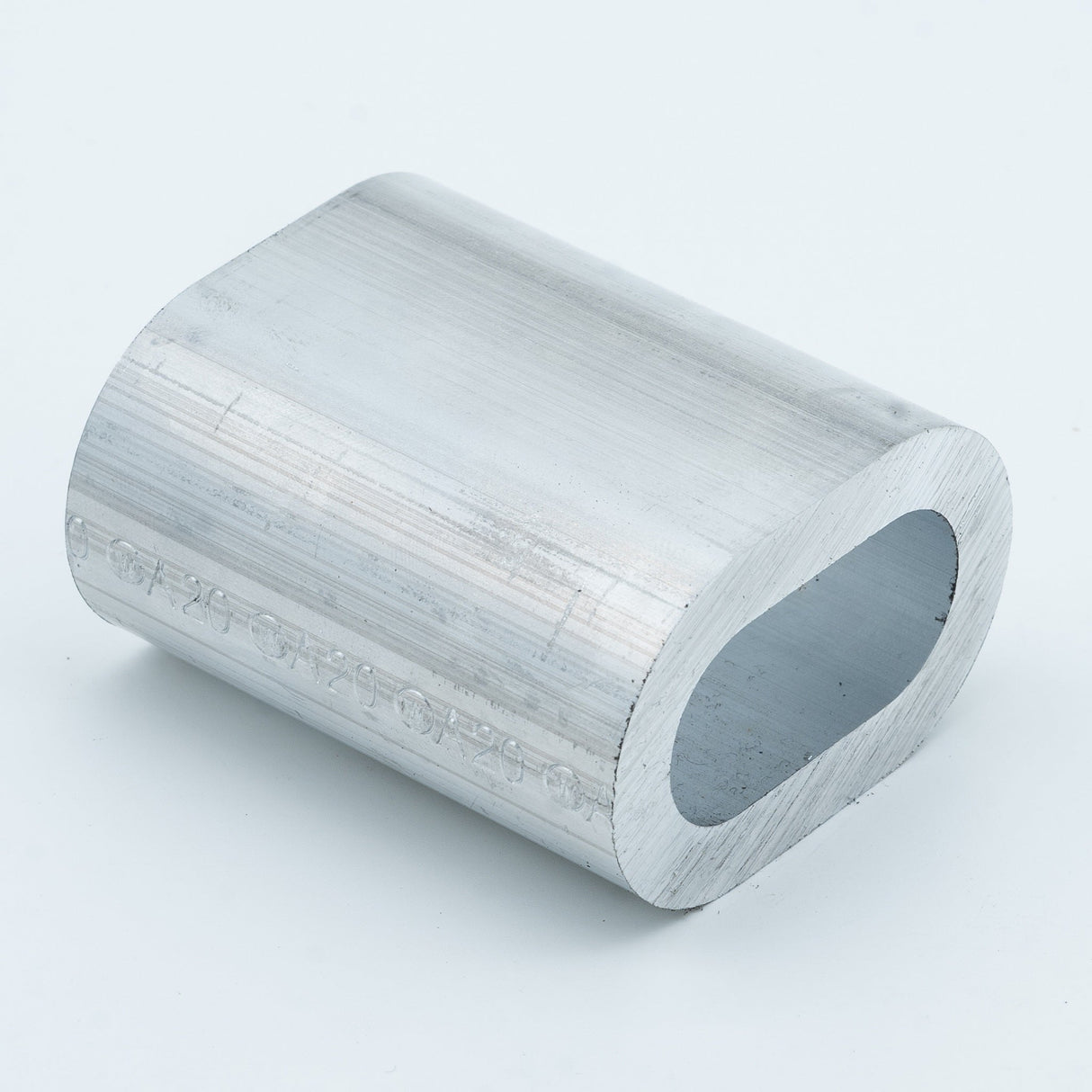

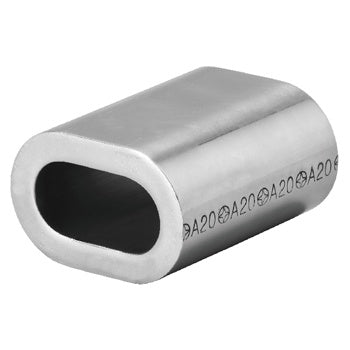

Zacisk aluminiowy standardowy EN13411-3 / DIN 3093
Od
0,49 zł bez VAT
Cena jednostkowa bez VAT
/
Niedostępne
Zacisk aluminiowy standardowy EN13411-3 / DIN 3093 - producent WI
| Wymiar tulejki | A | B | T | L | Waga |
| --- | mm | mm | mm | mm | kg/1000 szt |
| 1,0 | 1,20 | 2,40 | 0,65 | 5,00 | 0,094 |
| 1,5 | 1,70 | 3,40 | 0,75 | 6,00 | 0,211 |
| 2,0 | 2,20 | 4,40 | 0,85 | 7,00 | 0,375 |
| 2,5 | 2,70 | 5,40 | 1,05 | 9,00 | 0,499 |
| 3,0 | 3,30 | 6,60 | 1,25 | 11,00 | 0,843 |
| 3,5 | 3,80 | 7,60 | 1,50 | 13,00 | 1,320 |
| 4,0 | 4,40 | 8,80 | 1,70 | 14,00 | 1,810 |
| 4,5 | 4,90 | 9,80 | 1,90 | 16,00 | 2,610 |
| 5,0 | 5,50 | 11,00 | 2,10 | 18,00 | 3,570 |
| 6,0 | 6,60 | 13,20 | 2,50 | 21,00 | 5,860 |
| 6,5 | 7,20 | 14,40 | 2,70 | 23,00 | 7,550 |
| 7,0 | 7,80 | 15,60 | 2,90 | 25,00 | 9,500 |
| 8,0 | 8,80 | 17,60 | 3,30 | 28,00 | 13,700 |
| 9,0 | 9,90 | 19,80 | 3,70 | 32,00 | 19,800 |
| 10,0 | 10,90 | 21,80 | 4,10 | 35,00 | 26,400 |
| 11,0 | 12,10 | 24,20 | 4,50 | 39,00 | 35,800 |
| 12,0 | 13,20 | 26,40 | 4,90 | 42,00 | 45,800 |
| 13,0 | 14,20 | 28,40 | 5,40 | 46,00 | 59,700 |
| 14,0 | 15,30 | 30,60 | 5,80 | 49,00 | 73,500 |
| 16,0 | 17,50 | 35,00 | 6,70 | 56,00 | 111,000 |
| 18,0 | 19,60 | 39.20 | 7.60 | 63.00 | 156,000 |
| 20,0 | 21,70 | 43,40 | 8,40 | 70,00 | 217,000 |
| 22,0 | 24,30 | 48,60 | 9,20 | 77,00 | 292,000 |
| 24,0 | 26,40 | 52,80 | 10,00 | 84,00 | 376,000 |
| 26,0 | 28,50 | 57,00 | 10,90 | 91,00 | 481,000 |
| 28,0 | 31,00 | 62,00 | 11,70 | 98,00 | 603.000 |
| 30,0 | 33,10 | 66.20 | 12.50 | 105,00 | 739.000 |
| 32,0 | 35,20 | 70,40 | 13.40 | 112,00 | 897,000 |
| 34,0 | 37,80 | 75,60 | 14,20 | 119,00 | 1077,000 |
| 36,0 | 39,80 | 79,60 | 15,00 | 126,00 | 1275,000 |
| 38,0 | 41,90 | 83,80 | 15,80 | 133,00 | 1503,000 |
| 40,0 | 44,00 | 88,00 | 16,60 | 140,00 | 1734,000 |
| 42,0 | 46,20 | 92,40 | 17,50 | 147,00 | 2024,000 |
| 44,0 | 48,40 | 96,80 | 18,30 | 154,00 | 2314,000 |
| 46,0 | 50,60 | 101,20 | 19,20 | 161,00 | 2662,000 |
| 48,0 | 52,80 | 105,60 | 20,00 | 168,00 | 3010,000 |
| 50,0 | 55,00 | 110,00 | 20,80 | 175,00 | 3412,000 |
| 52,0 | 57,20 | 114,40 | 21,60 | 182,00 | 3813,000 |
| 54,0 | 59,40 | 118,80 | 22,50 | 189,00 | 4293,000 |
| 56,0 | 61,60 | 123,20 | 23,30 | 19,.00 | 4772,000 |
| 58,0 | 63,80 | 127,60 | 24,20 | 203,00 | 5326,000 |
| 60,0 | 66,00 | 132,00 | 25,00 | 210,00 | 5880,000 |
