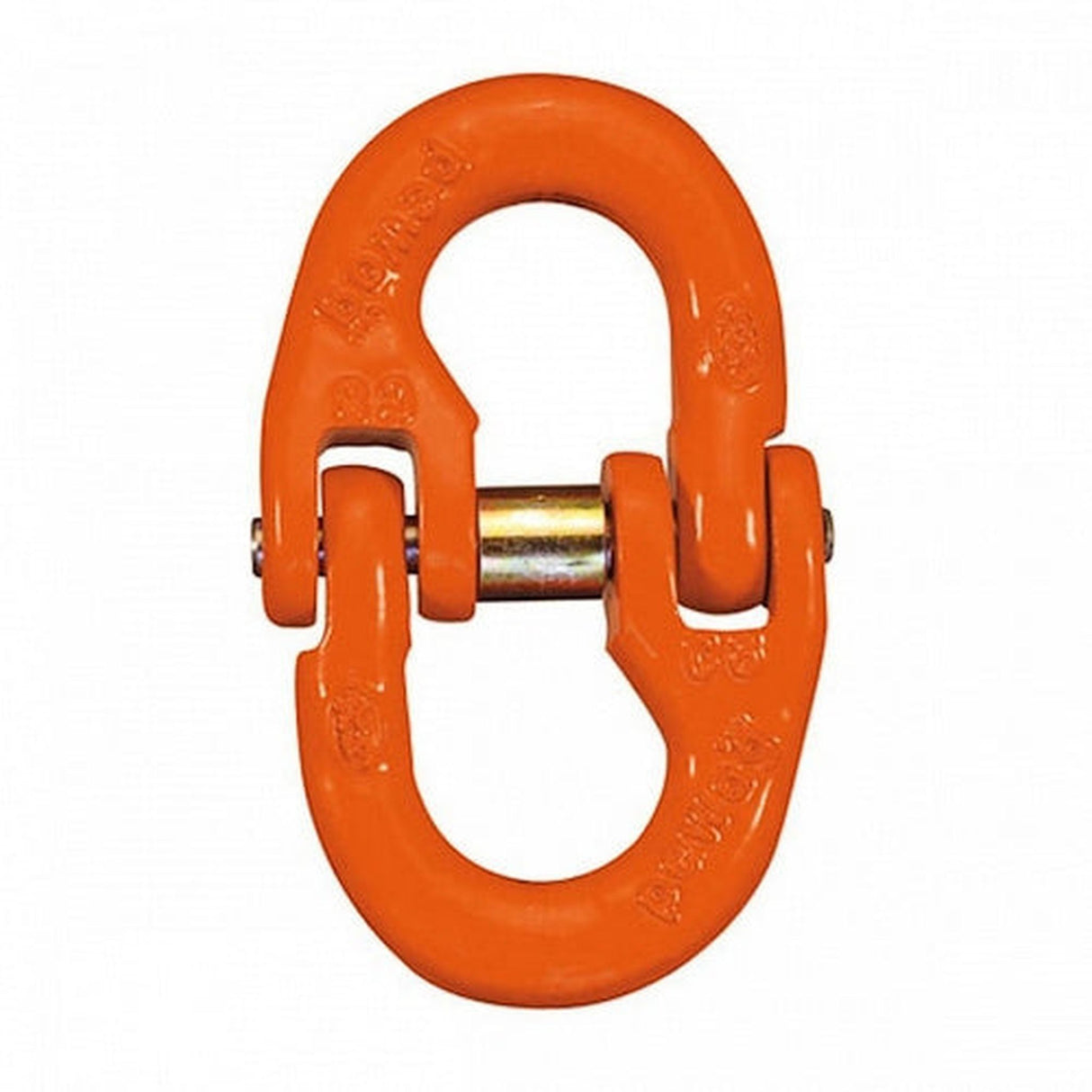

Ogniwo łączące Connex CW, klasa 10, PEWAG WINNER
Od
45,60 zł bez VAT
Cena jednostkowa bez VAT
/
Niedostępne
Ogniwo łączące Connex CW, klasa 10, PEWAG WINNER

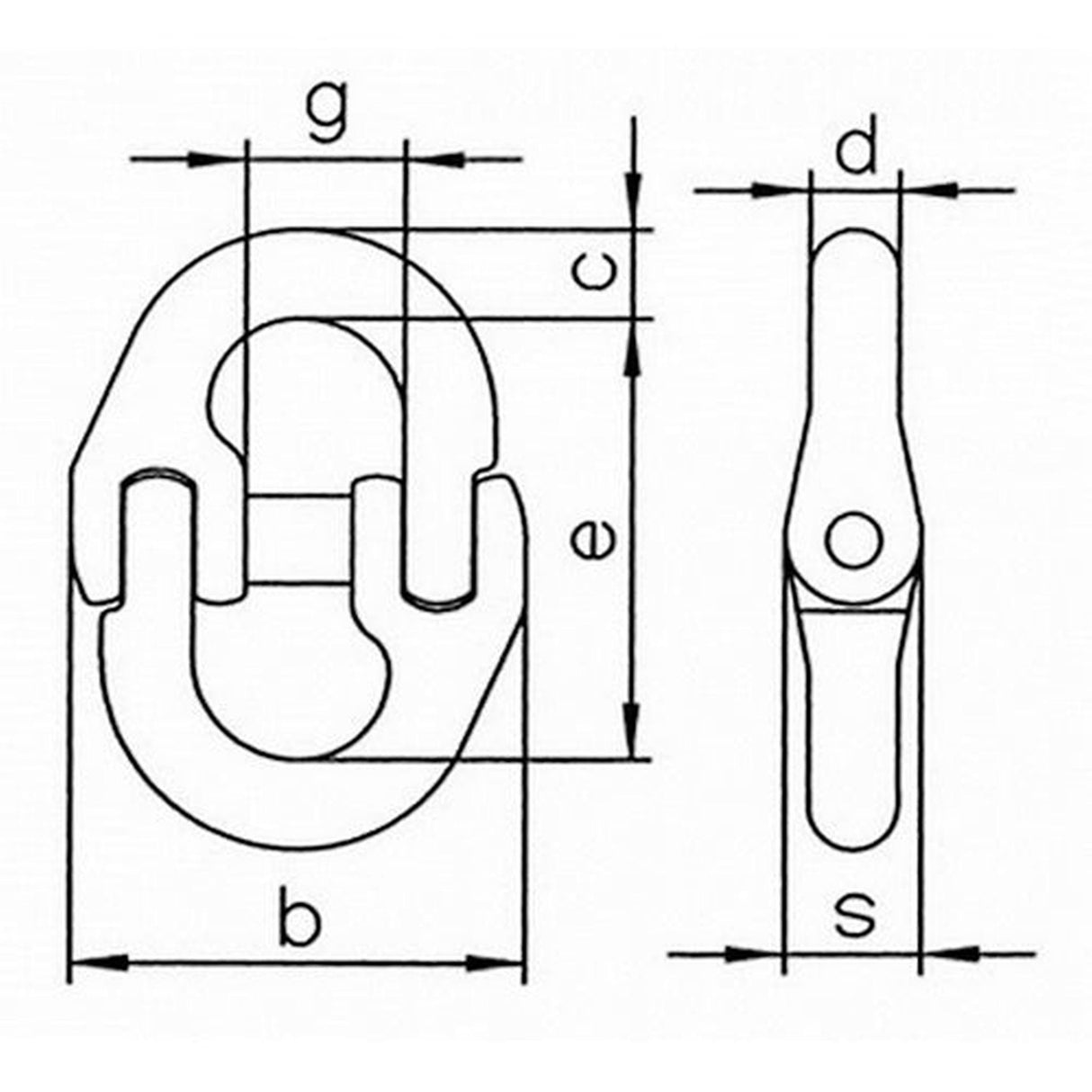

| Model | Dopuszczalne obciążanie robocze DOR | e | c | s | d | b | g | Waga |
| --- | t | mm | mm | mm | mm | mm | mm | kg |
| CW 5 | 1,0 | 36 | 7 | 9 | 7 | 35 | 13 | 0,05 |
| CW 6 | 1,4 | 44 | 8 | 11 | 8 | 39 | 14 | 0,06 |
| CW 7 | 1,9 | 51 | 10 | 13 | 9 | 47 | 17 | 0,12 |
| CW 8 | 2,5 | 62 | 12 | 14 | 10 | 55 | 18 | 0,23 |
| CW 10 | 4,0 | 72 | 15 | 18 | 13 | 64 | 24 | 0,42 |
| CW 13 | 6,7 | 88 | 20 | 22 | 17 | 79 | 28 | 0,84 |
| CW 16 | 10,0 | 103 | 21 | 29 | 21 | 106 | 33 | 1,40 |
| CW 19/20 | 16,0 | 115 | 30 | 35 | 25 | 118 | 42 | 2,40 |
| CW 22 | 19,0 | 161 | 34 | 39 | 25 | 148 | 51 | 4,15 |
| CW 26 | 26,5 | 190 | 40 | 46 | 30 | 175 | 60 | 6,70 |
| CW 32 | 40,0 | 206 | 47 | 56 | 35 | 216 | 80 | 11,20 |
